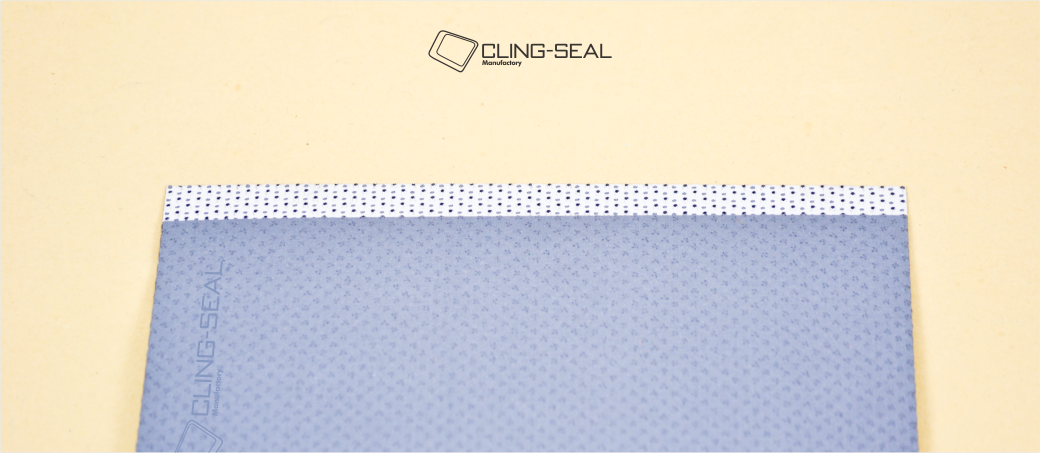

CS1060T  Reinforced Asbestos Sheet With Perforated Metal

Reinforced Asbestos Sheet With Perforated Metal
CS1060T
More about buy>

From this page you can purchase reinforced asbestos sheets from 1.0 to 3mm thickness. Remember that as a general rule you should select the thinnest material possible for your application.
General Properties of asbestos gasket sheet is made from two sides asbestos beater sheet with 0.2-0.25mm perforated metal insert. It generally used in high temperature and high pressure environments, and commonly finds applications in steam cycling or exhaust applications.
If you can’t find what you’re looking for, of require a bespoke material, please do not hesitate to contact us.
Is reinforced asbestos gasket sheet the Best Material for My Application? If you are unsure as to which material is best for your application then you can consult our gasket material selector, or our guide to rubbers. Material specifications can be downloaded from the link on the left of this page.
Alternatively, we are always happy to offer technical help and advice and so if you require assistance then please do not hesitate to contact us.

Product Specification
Supplier = Cling-Seal
Condition = New
Thicknesses Available = 1.0mm- 3mm;3.0mm-6.0mm
Sheet Size Available = 500*500mm,500*1000mm,1000*1000mm,1000*1500mm,Etc


Item

Data

Tensile Strength (MPamin.)

30

Compressibility (%,)

8-18

Recovery (%)

40

150, At IRM 903# for 5hours

Thickness Increase (%)

10

Weight Increase (%)

15

21℃~30, At B Fuel for 5hours

Thickness Increase (%)

10

Weight Increase (%)

15

Thickness Deviation(mm

0.05

Product Technical Details
As a general rule, asbestos gasket sheet is:
• Good for use with oil
• Good ozone resistance
• Good with natural gas

Customer Service
We are happy to answer any questions that you might have about this product. Please contact us for more information.
